XB-A02M-A-M5-3P| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |

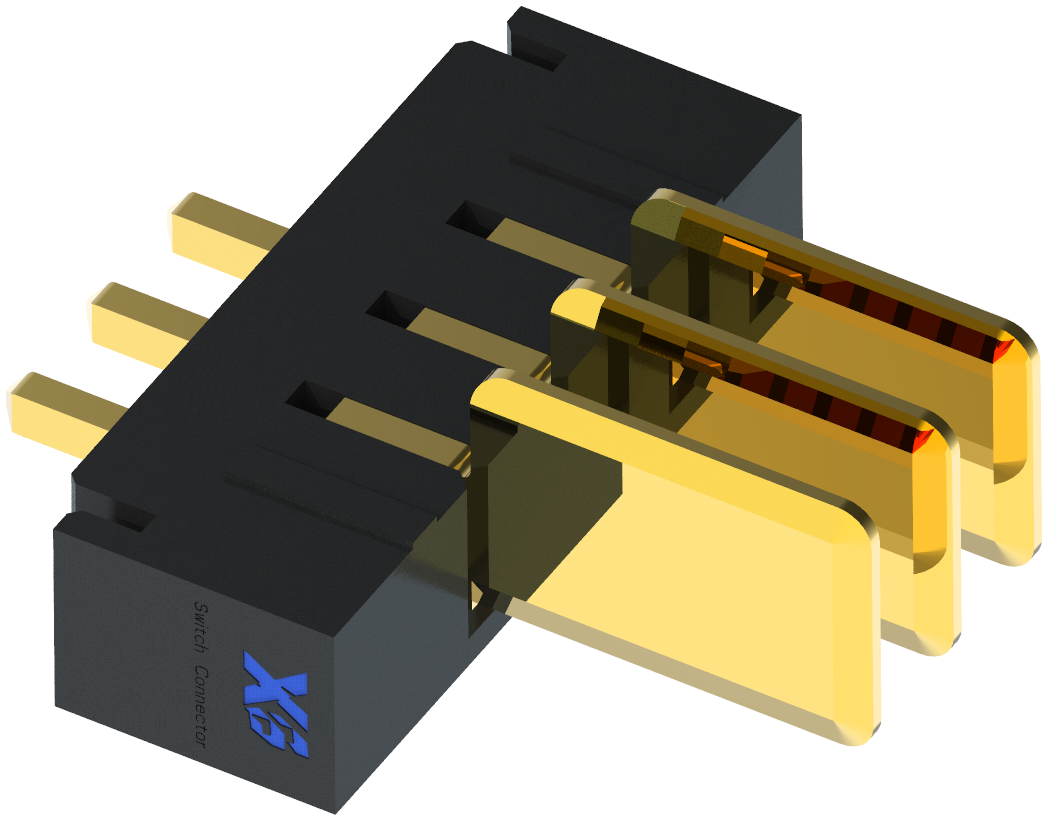

XB-A02M-A-M5-3P  3D
 Drawings |
  |
11.65 * 4 * 10.53P male/blade connector/blade socket/high-power blade battery holder/blade battery connector/battery socket spacing: 2.0mm | Normal | 4~7 | 0.5 | 500 | 3000 | 10000 |  Compatible Xibang |
||
| XB-A02M-A-M5-3P-X 3D
Drawings |
  |
11.65 * 4 * 10.53P male/blade connector/blade socket/high-power blade battery holder/blade battery connector/battery socket spacing: 2.0mm | Normal | 4~7 | 0.5 | 500 | 3000 | 10000 | Compatible Xibang |
| product name | 1. Blade battery plug | material quality |
| 2. The shell | Nylon at 10T GN2330 UL 94-V | |
| 3. Terminal | Brass gold plated | |
| 4. spacing | 2.0mm | |
| 5. Insulator | PA10T | |
| Use the temperature range | -25℃±85℃ | |
| Maximum rating (resistance load) | 7A 12V DC | |
| Minimum rating (resistance load) | 5A 6V DC | |
| Electric performance | withstand voltage | 500V |
| insulation resistance | 100MΩ 500V DC | |
| Contact resistance (initial / post-life) | 30mΩ max./100mΩ max. | |
| lasting quality | No load life | 5000 Times |
| Load life (maximum rated load) | 5000 Times | |
| Environmental resistance | Cold resistance | -25℃±3°C 48/h |
| resistance to effect of heat | 85℃±2°C 96/h | |
| Moisture resistance | 60℃, 90 to 95%RH 500h | |
| Salt mist performance | 35°C ± 2°C 4h ± for 15 sec | |
| welding condition | ||
| When immersed in welding | preheat temperature | 100℃ |
| Preheat temperature time | 60s max. | |
| welding temperature | 260±5℃ | |
| Welding impregnation time | 3±0.5s | |
| Hand welding | welding temperature | 350±10℃ |
| weld period | 4s max. |
