| Product Center > Switch > Keyswitch > Scanning lock

▍Xibang material number：XB-C-175

Product name: Key switch Service life: 50,000 times Working temperature: -25℃±55℃ Product certification: ROHS

3D files and drawings

3D filesXB-C175 Specifications SP
3D filesXB-C175 Specifications SP

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

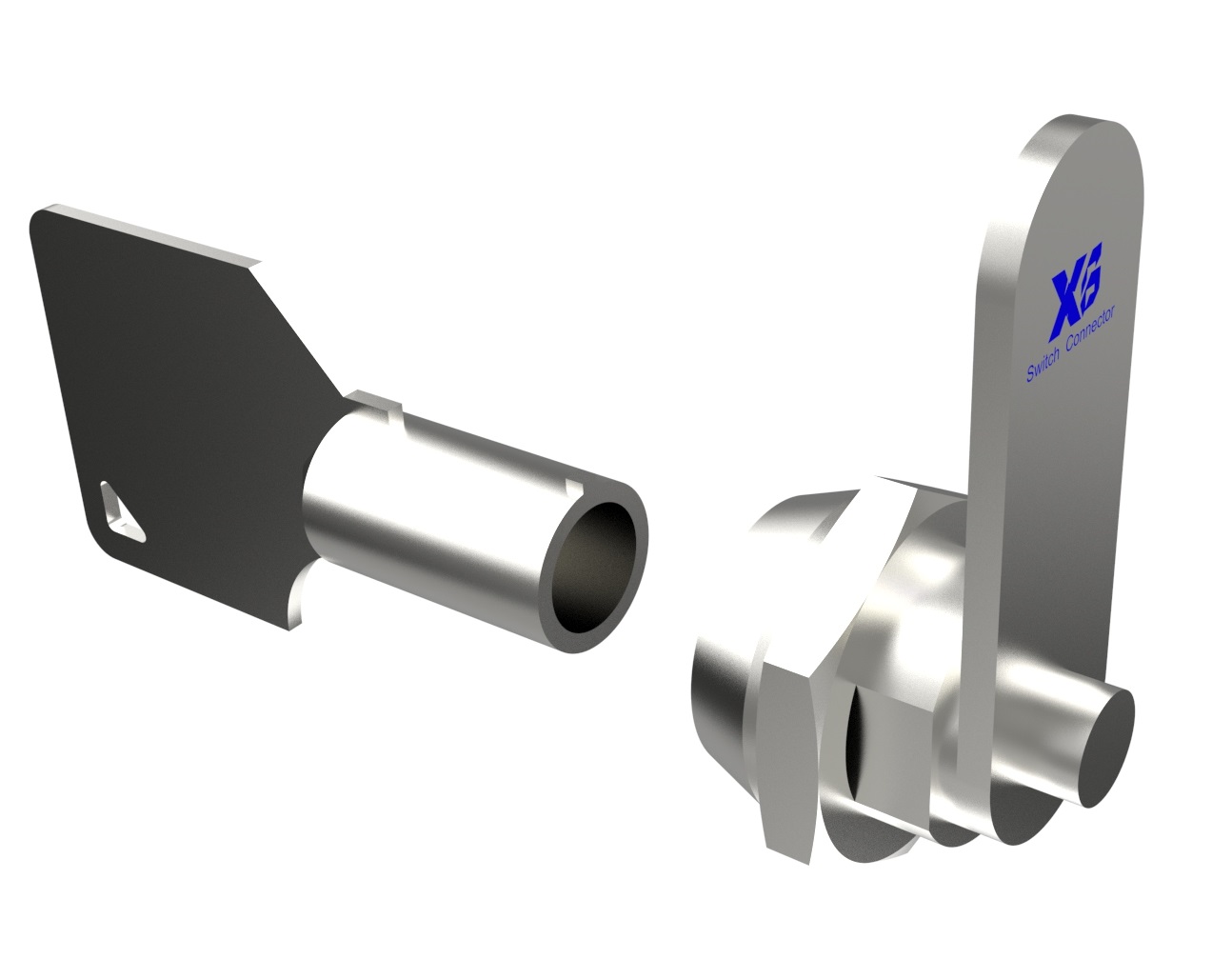

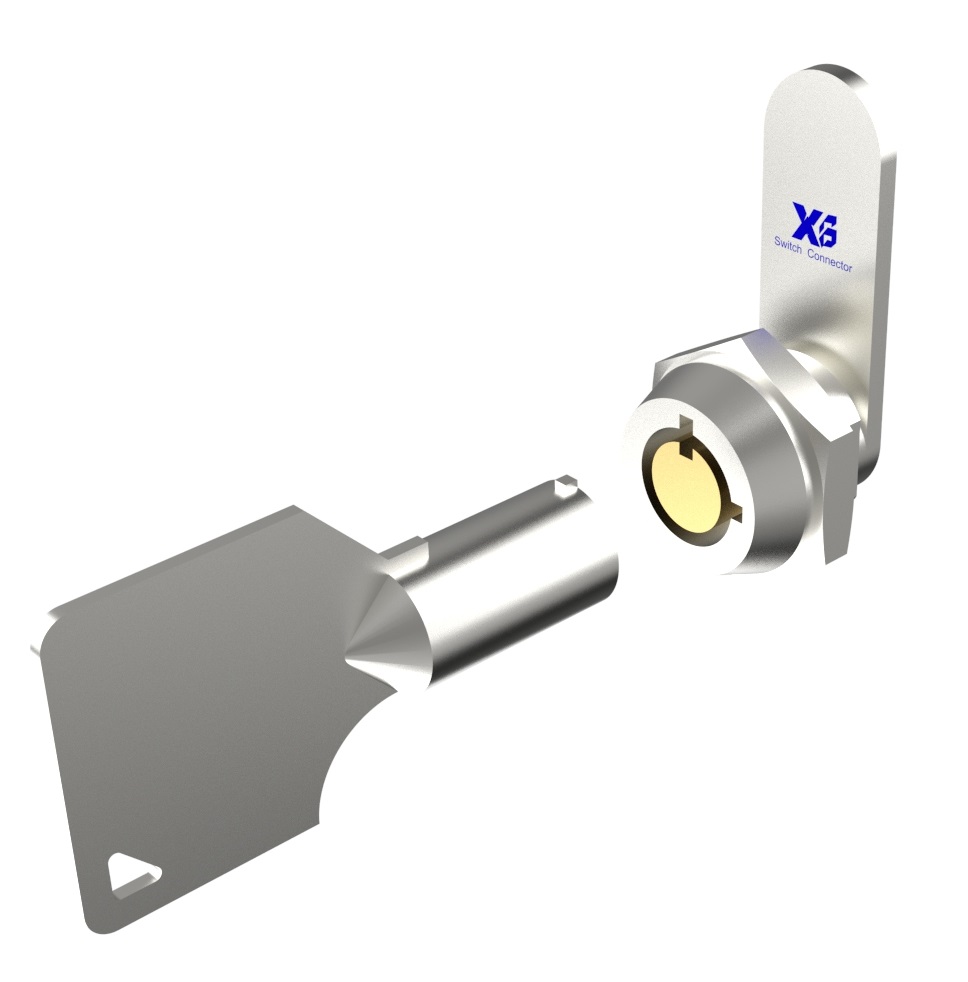

XB-C-175 3D Drawings		Ø 12mm metal key switch/scanning switch/key switch/key lock switch/metal rotary knob switch with key	1986	Normal	A week	0.64g	500	1000	100000	Compatible Xibang	Consult
XB-C-175-X 3D Drawings		Ø 12mm metal key switch/scanning switch/key switch/key lock switch/metal rotary knob switch with key	1986	Normal	A week	0.64g	500	1000	100000	Compatible Xibang	Consult

product name	1.Key scan lock switch	Material
	2.Lock shell	zinc alloy
	3. Lock cylinder	zinc alloy
	4.Key	Hbp59-1
	6. Nuts	zinc alloy
	7.Terminal	silver

Electrical properties	Operating temperature range	-20℃±55℃
	Dust/moisture proof	IP40 (return) IP65 (maintain)
	Service life	50,000 times

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
