XB-SW-200M-14G15N| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |
XB-SW-200M-19G15N  3D
 Drawings |
  |

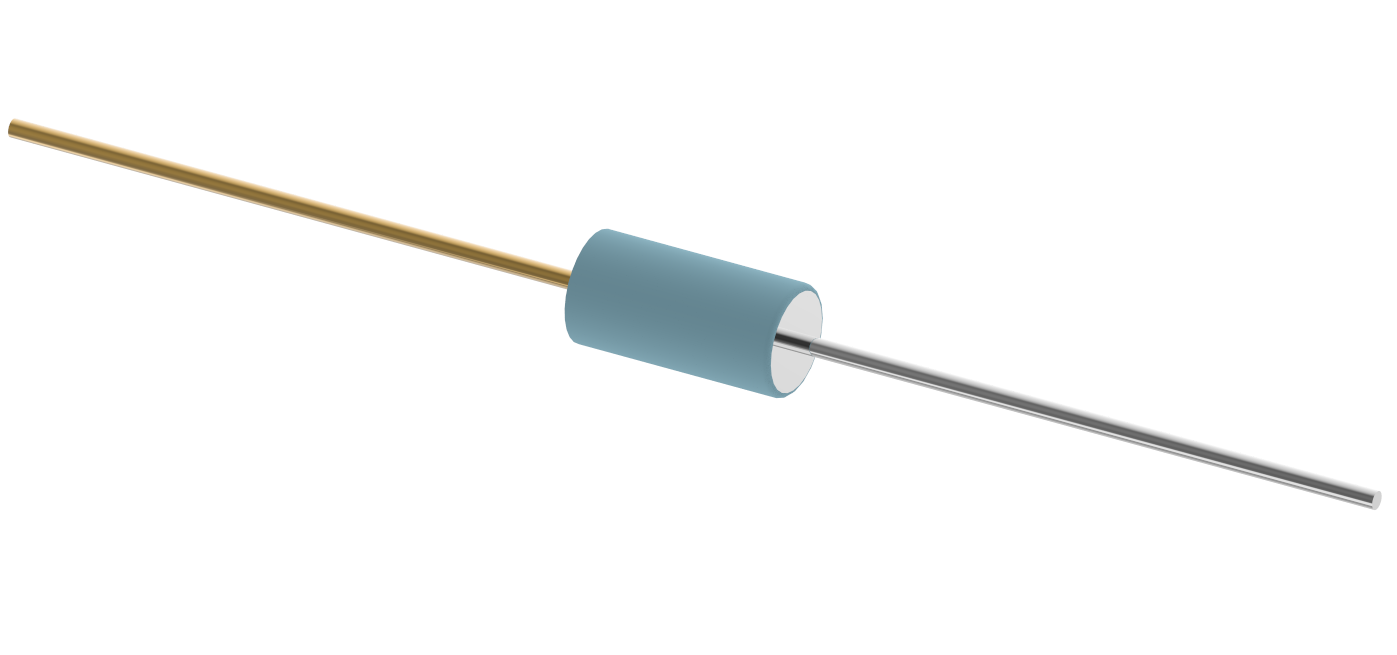

Ball switch Ø 3.6X7.0MM/Vibration switch with simple signal and circuit design/Vibration switch This specification product is fully sealed and can be waterproof and dustproof | Normal | 3~7 days | 0.3g | 1000 | 5000 | 20000 |  Compatible Xibang |
||
| XB-SW-200M-19G15N-X 3D
Drawings |
  |
Ball switch Ø 3.6X7.0MM/vibration switch single directional trigger switch. By utilizing the rolling of conductive beads inside the tube to cause contact with metal terminals, the effect of continuity or non continuity is achieved. Simple structure and convenient use, suitable for smart toys, smart wearable products, and home appliances, etc | Normal | 3~7 days | 0.3g | 1000 | 5000 | 20000 | Compatible Xibang |
| Product material | 1.Tilt Switch | material quality |
| 2. Steel beads | SUS / Brass silver plating | |
| 3. Plastic | Winnisolone resistance | |
| 4. The Pin needle at No | Brass Silver / Brass Gold plated | |
| 5. Working principle | Tilt guide | |
| Usage temperature range: | -10℃ to 60℃ | |
| Maximum rating (resistance load): | 10mA 6V DC | |
| Minimum rating (resistance load): | 2uA 1V DC | |
| withstand voltage: | 250V AC | |
| insulation resistance: | >10 MΩ | |
| Closed circuit resistance: | <30 Ω | |
| Terminal pull | 250gf±500gf | |
| Electric performance | Salt Spray Test | The 95% relative humidity was 40℃ 24 / h |
| Operation life | 200,000 times | |
| welding temperature | 250℃±10℃ | |
| mechanical properties | weld period | <5 Seconds |
| project | test condition | function |
| durability | ||
| Welding experiment | The top of the terminal was immersed in the solder cell at 2mm depth at 250 ± 5℃ for 3 seconds | More than 95% of the immersed surface will be covered with tin |
| No lead tin test | Alloy:Sn 96.5% Cu 3% Ag 0.5% | |
| Ingredients: tin 96.5% copper 3% silver 0.5% | ||
| Reflow welding heat test |
|
The body has no deformation and can be satisfied with the mechanical and electrical performance |
| Temperature refers to the temperature of the PC plate surface | ||
| The PC plate is 1.0 mm thick | ||
