| Product Center > Switch > Tilt Sensor Switch > Ball type

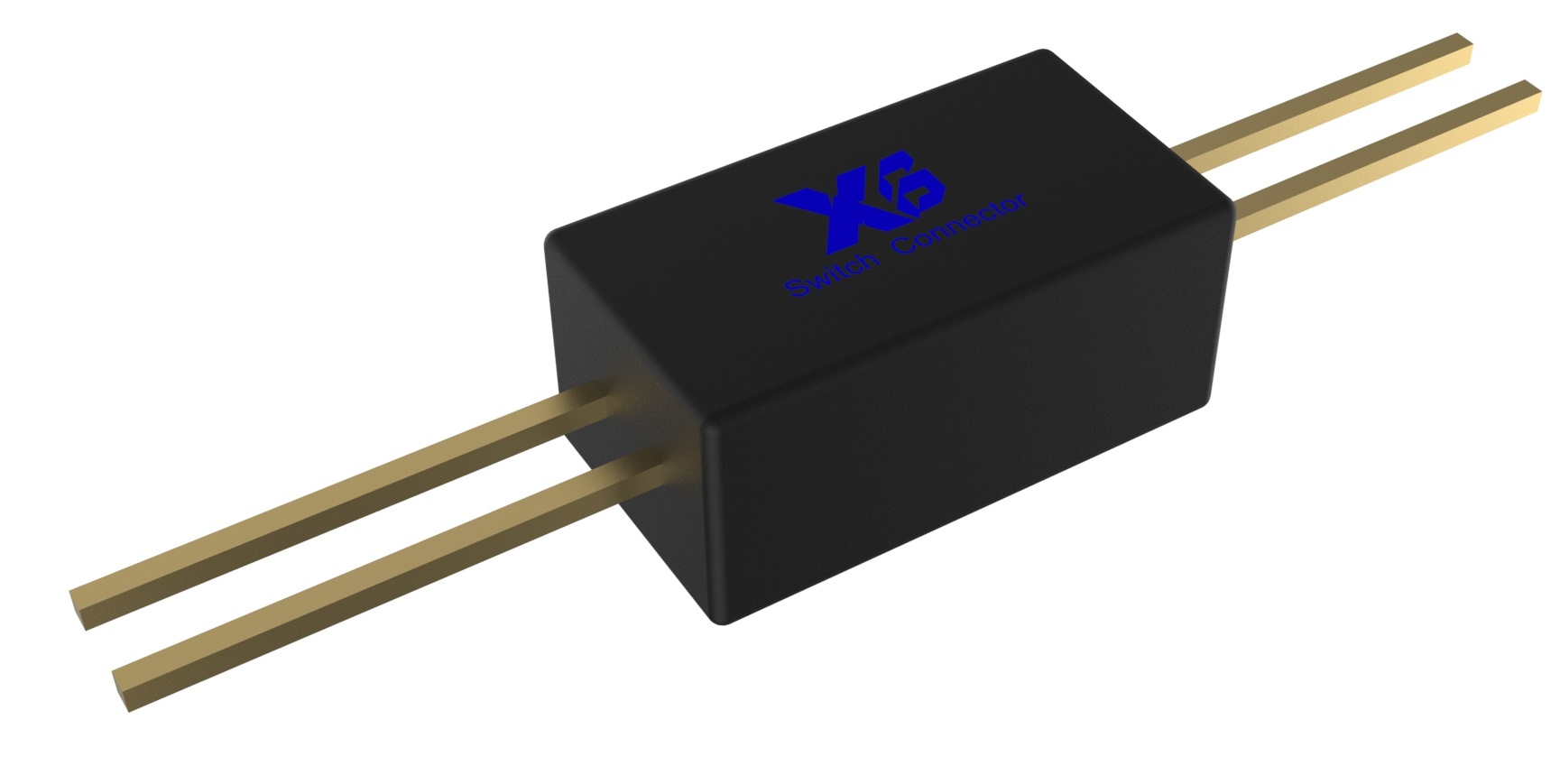

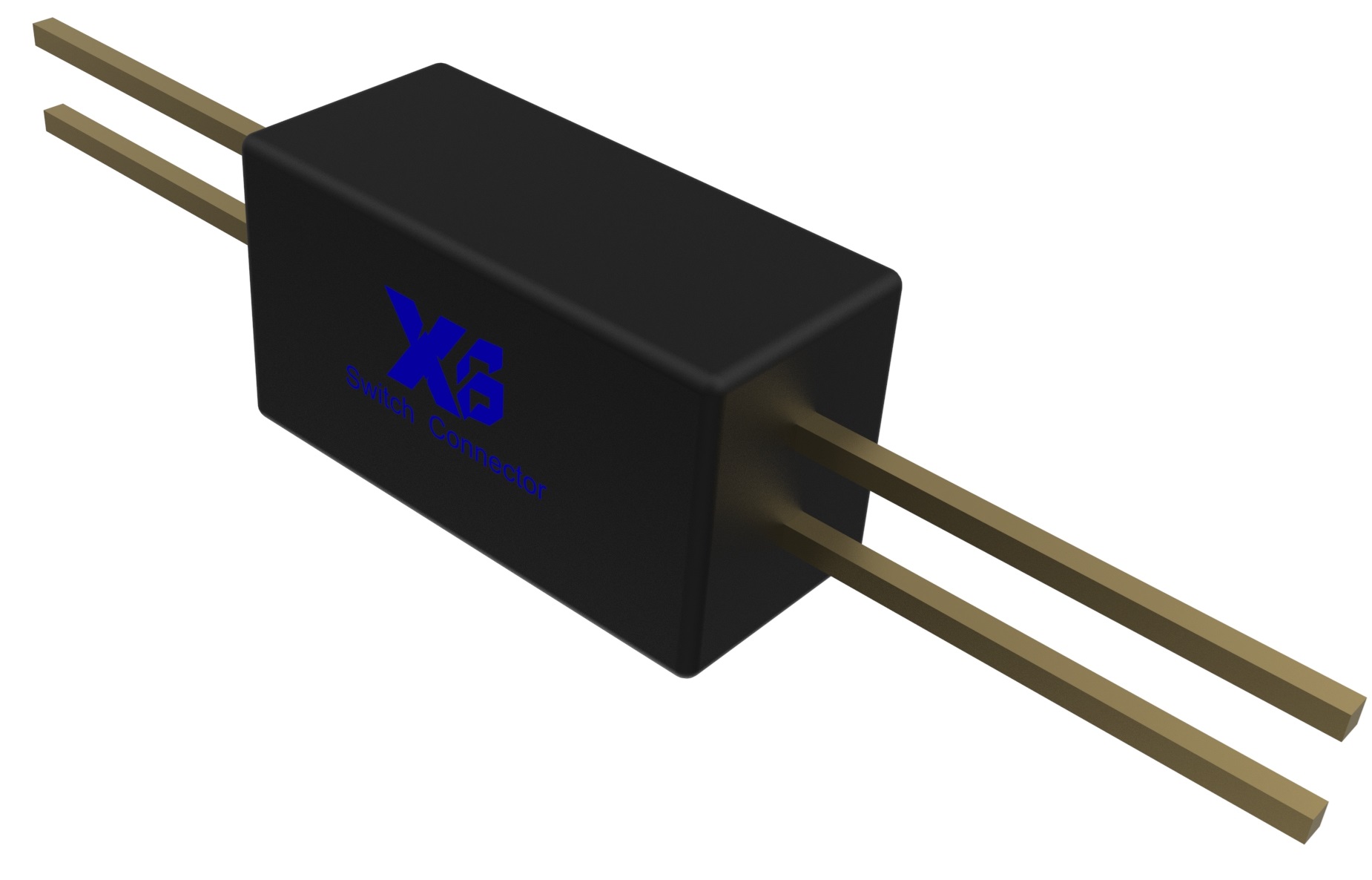

▍Xibang material number：XB-R511L-4

Product name: ball switch Rated current: 2uA-10mA Rated voltage: 1-6V Circuit function: inclined conduction

Contact resistance:>10 M Ω Closed circuit resistance:>10 M Ω Welding temperature: 260 ℃± 10 ℃, temperature resistance: - 40 ℃ to 85 ℃

Salt spray test: 95% RH, 40 ℃ for 24 hours Service life: 100000 cycles Product certification: ROHS

3D files and drawings

3D filesXB-R511L-4 Specifications SW
3D filesXB-R511L-4 Specifications SW
3D filesXB-R511L-4 Specifications SW

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-R511L-4 3D Drawings		11 * 5 * 6mm vibration switch/vibration detection switch/tilt switch/trigger switch/ball switch/tilt vibration switch		Normal	3~7 days	0.5	5000	5000	20000	Compatible Xibang	Consult
XB-R511L-4-X 3D Drawings		11 * 5 * 6mm vibration switch/vibration detection switch/tilt switch/trigger switch/ball switch/tilt vibration switch		Normal	3~7 days	0.5	5000	5000	20000	Compatible Xibang	Consult
XB-R511L-4-X-X 3D Drawings		11 * 5 * 6mm vibration switch/vibration detection switch/tilt switch/trigger switch/ball switch/tilt vibration switch		Normal	3~7 days	0.5	5000	5000	20000	Compatible Xibang	Consult

product material	1. Tip sensor	Material
	2. Plastic cover	PBT
	3. Plastic seat	PBT
	4. Balls	Brass silver plated/brass gold plated
	5. Guide pin	Brass silver plated/brass gold plated
	6. Shell	PBT/PA66

	Operating temperature range	-20°C±80°C
	Working current	<12mA
	Operating Voltage	5VDC
	On-resistance	<10Ω

Electrical properties	pouring speed	>30°/s

Durability	Service life	＞50,000 hours
	Solder temperature	260°±5°C
	wave soldering	250°C±10°C

Push product information to email Technical drawing download

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
