XB-DC-012A-5A-2.5| 产品编号 | 产品图片 | 产品描述 | 在产状态 | 出货周期 | 商品毛重 | MPQ | MOQ | 生产在途 | 竞品购买 | 操作 |

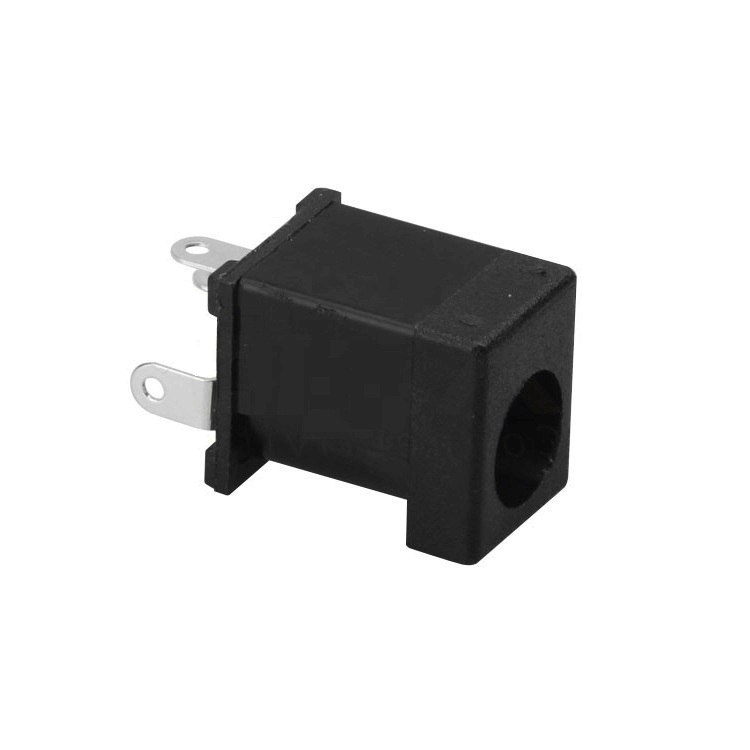

XB-DC-012A-5A-2.5  3D
 查看图纸 |
|
DC连接器 OD:6.3xID:2.5 180度 PBT | 正常 | 1~2周 | 0.000 | 500个/袋 | 3000 | 10000 |  兼容溪榜 |
| 产品材质 | housing: | see table black | ||
| cover: | pa66 black | |||
| pin: | h59 ni-plated | |||
| Terminal: | c2680-eh t=0.35 ag-plated | |||
| Terminal: | c5210-eh t=0.25 ag-plated | |||
| Terminal: | c2680-eh t=0.25 ag-plated | |||
| 环境条件 | Temperature range: | -20 °C/+70 °C | ||
| Mating cycles: | ≥ 5000 | |||
| Insertion force: | ≤ 30 N *1 | |||
| Withdrawal force: | 3–20 N *2 | |||
| 电气数据 | Contact resistance: | ≤ 30 mΩ | ||
| Rated current: | 5 A | |||
| Rated voltage: | 24 V DC | |||
| Rated impulse voltage: | 500 V/60 s | |||
