XB-C-PJ04-01| 产品编号 | 产品图片 | 产品描述 | 在产状态 | 出货周期 | 商品毛重 | MPQ | MOQ | 生产在途 | 竞品购买 | 操作 |
XB-C-PJ04-01  3D
 查看图纸 |
|

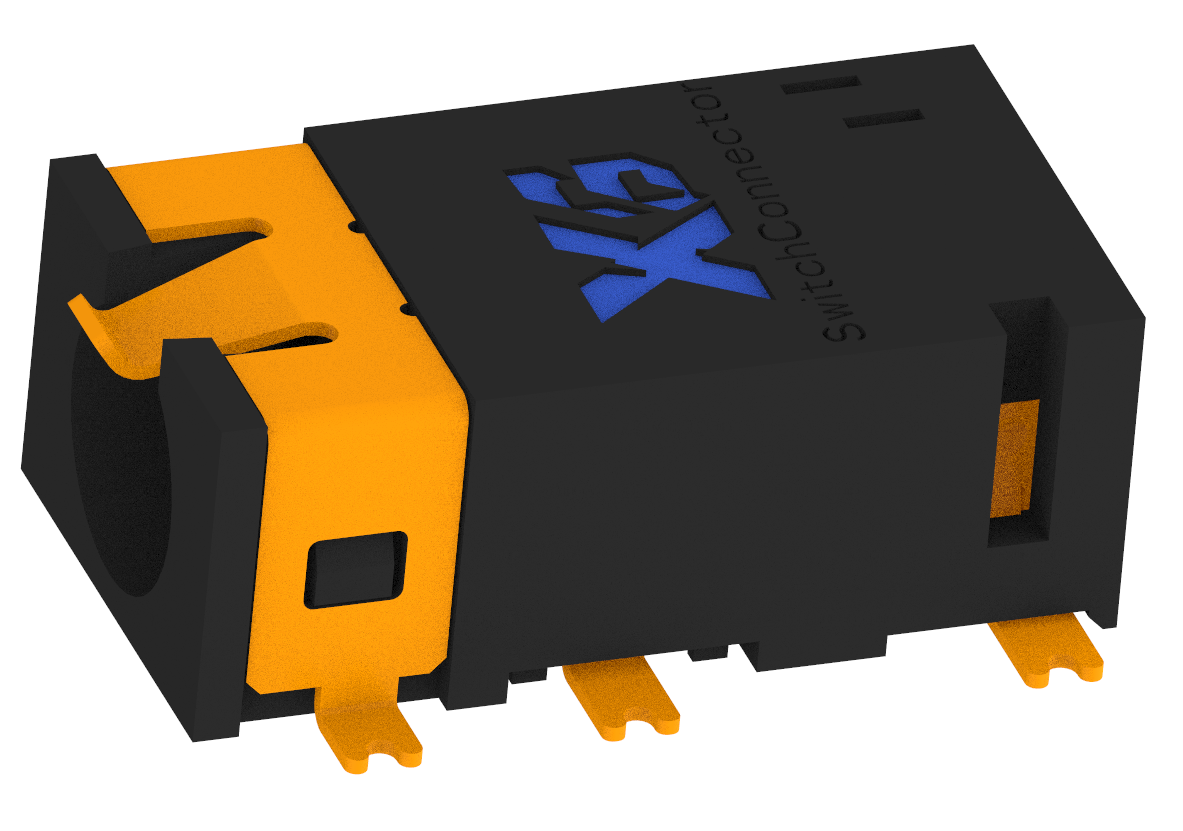

3.5耳机插座 Φ3.5mm 4.5H 6PIN 无头耳机插座 | 正常 | 1~2周 | 0.472 | 1000个/袋 | 3000 | 10000 |  兼容溪榜 |
| 产品材质 | terminal 1: | Phosphor Bronze,Gold | ||
| terminal 2: | Phosphor Bronze,Gold | |||
| terminal 3: | Phosphor Bronze,Gold | |||
| terminal 4: | Phosphor Bronze,Gold | |||
| terminal 10: | Phosphor Bronze,Gold | |||
| terminal 11: | Phosphor Bronze,Gold | |||
| plastic: | High Temp. Thermoplastic | |||
| 环境条件 | Temperature range: | -20 °C/+70 °C | ||
| Mating cycles: | 5000 | |||
| Insertion force: | 5–20 N | |||
| Withdrawal force: | 4–20 N | |||
| 电气数据 | Contact resistance: | ≤ 30 mΩ | ||
| Rated current: | 0.5 A | |||
| Rated voltage: | 30 V AC/DC | |||
| Rated impulse voltage: | 500 V/60 s | |||
